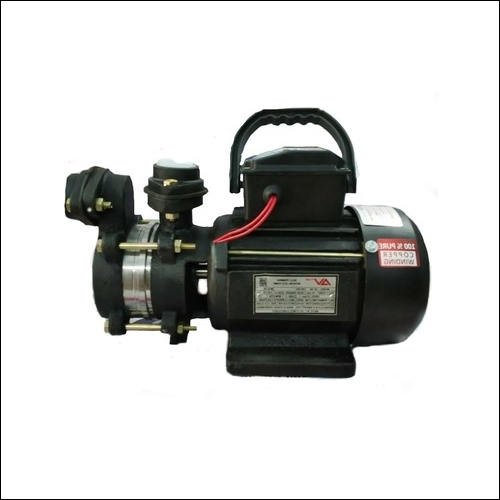

0.5 HP Super Suction Series

0.5 HP Super Suction Series
0.5 HP Super Suction Series
Send Inquiry
Product Code : 003
Price And Quantity
  • Minimum Order Quantity
  • 10
  • Unit of Measure
  • Piece/Pieces,
Product Description

Our company is one of the leading Suppliers, Manufacturers and Exporters of Self Priming Pump. The offered range is made from high grade Cast Iron & Brass Impeller and ultra-modern techniques, under the guidance of our team of expert professionals. Being a customer-oriented organization, we make sure to provide the optimum quality and durable products, which are excellent in performance. Furthermore, the range of Self Priming Pump supplied by us at competitive prices.

Technical Specification :

Power Range

0.37kW & 0.75kW (0.50 HP & 1.0 HP)

Speed

2880 RPM

Version

A.C. Single Phase, 180 - 240V. 50Hz, Permanent split capacitor (CSR) Incorporated with Thermal Cutout Relay

Insulation

Class 'B'

Duty Type

S1 (Continuous)

Head Range

4 mtrs - 52 mtrs

Degree of Protection

IP 44

Head Range:

4 mt to 52 mt.

Flow Range:

up to Max 3990 LPH.

Material of Construction

Motor Frame:

Aluminium / Casting if request.

Bearing:

Double Sealed Precision Ball Bearing.

Impeller:

Forged Brass Impeller

Sealing:

Mech. Seal - Carbon Vs Ceramic

Shaft:

AISI - 410 / EN 8 on request

Stamping:

High Grade LC.

Evaluation Chart :


Discharge in L. P. H.

Single Phase Self Priming Monoblock Pump Set

Model

HP

Pump Size (mm)

Total Head in Meters

4

6

8

12

16

18

20

24

28

30

32

34

38

42

48

52

AV-2

0.50

25x25

2500

2320

2000

1680

1360

1040

910

680

420








AV-4

0.50

25x25

3280

3050

2825

2400

2170

1990

1810

1470

960

720

480






AVC-4

0.50

25x25

3280

3050

2825

2400

2170

1990

1810

1470

960

720

480






AV-4

1.00

25x25

3990

3810

3500

3200

3050

2890

2750

2570

2400

2220

2000

1820

1650

1490

950

360

1490AVC-5

1.00

25x25

3990

3810

3500

3200

3050

2890

2750

2570

2400

2220

2000

1820

1650

1490

950

360

AVSW-2

0.50

25x25

3670

3460

3410

3390

3000

2580

2170

1480

630








AVSW-5

1.00

25x25

3600

3560

3530

3390

3200

3050

2900

2780

2650

2520

2190

1530

810

620
